New Solar Bus Stop Led Light 948 lumens

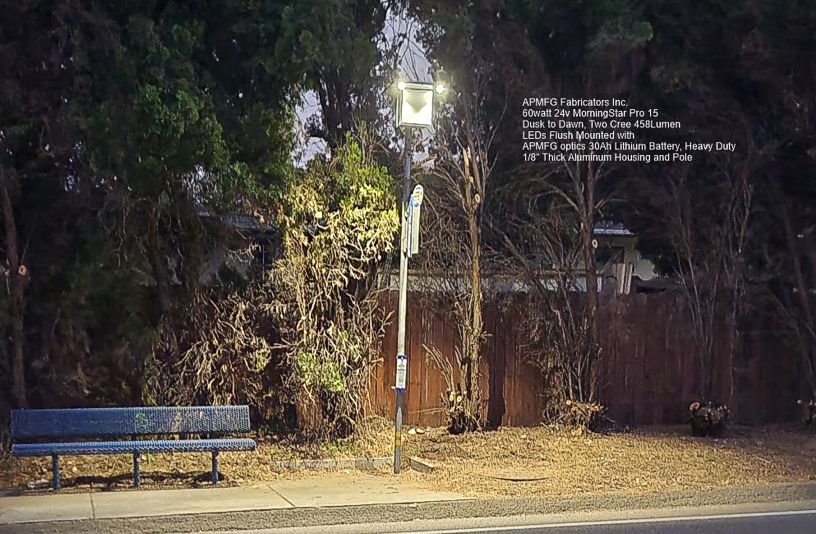

Solar Bus Stop 948 lumen LED Light Pole:
New Solar Light Pole System by APMFG Fabricators Inc. for NCTD (North County Transit District).
Key Specifications
Solar Panel: 60W, 24V
Battery: 30Ah Lithium
Charge Controller: Commercial-grade Morningstar Pro (PWM or MPPT variant, configurable for Dusk-to-Dawn operation)
Lighting: Two Cree 458 Lumen flush-mounted LED lights (Cool White)
Enclosure: Custom fabricated 1/8 thick aluminum housing
Pole/Mount: 2 1/2 x 2 1/2 x 1/8 wall Aluminum Square Tube (6061 T6)
Finish: Powder Coated with Primer + Super Durable 38 Anodize Silver top coat
This design emphasizes durability, vandal resistance, and all-aluminum construction for long-term outdoor use in transit applications. It provides reliable off-grid illumination for bus stops, HOA Mail Boxes enhancing safety and visibility at night.
- Manufactured Small buy America
- Solar Panel options 60 watt to 200 watt
- Illumination dimensions 11 feet by 22 feet wide with 2 foot candles to .56.
- The foot candles from 2ft to the base of the light is 1.7 foot candles the custom design LED fixture designed to lay out an even illumnation..
- Runs Dusk to Dawn or can be set for 10 different time settings
- APMFG Solar has designed this self contained Solar Bus Stop Light for many States..
Batteries are sized to 5 night reserve in either Lithium or AGM batteroes.
1/8 thick Aluminum Fabricated LED Fixture with 2 high power LED and APMFG designed LEN'S
High output illumination
| PN# | Lamp Type | Watts | Input Volts | Forward Current | Led Color | Flux |
|---|---|---|---|---|---|---|
| 200w- | 1800 | 15 | 12- V DC | 3500 MA | Bright White | 5000k |
| 60w | 948 | 6.5 | 24 V DC | 350-700 MA | Bright White | 5000k |
|
|---|
